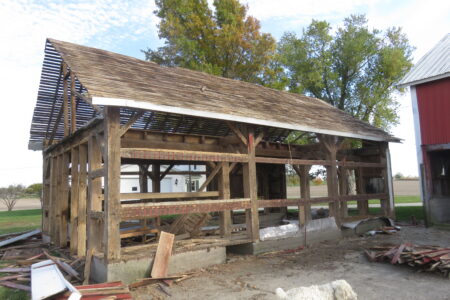

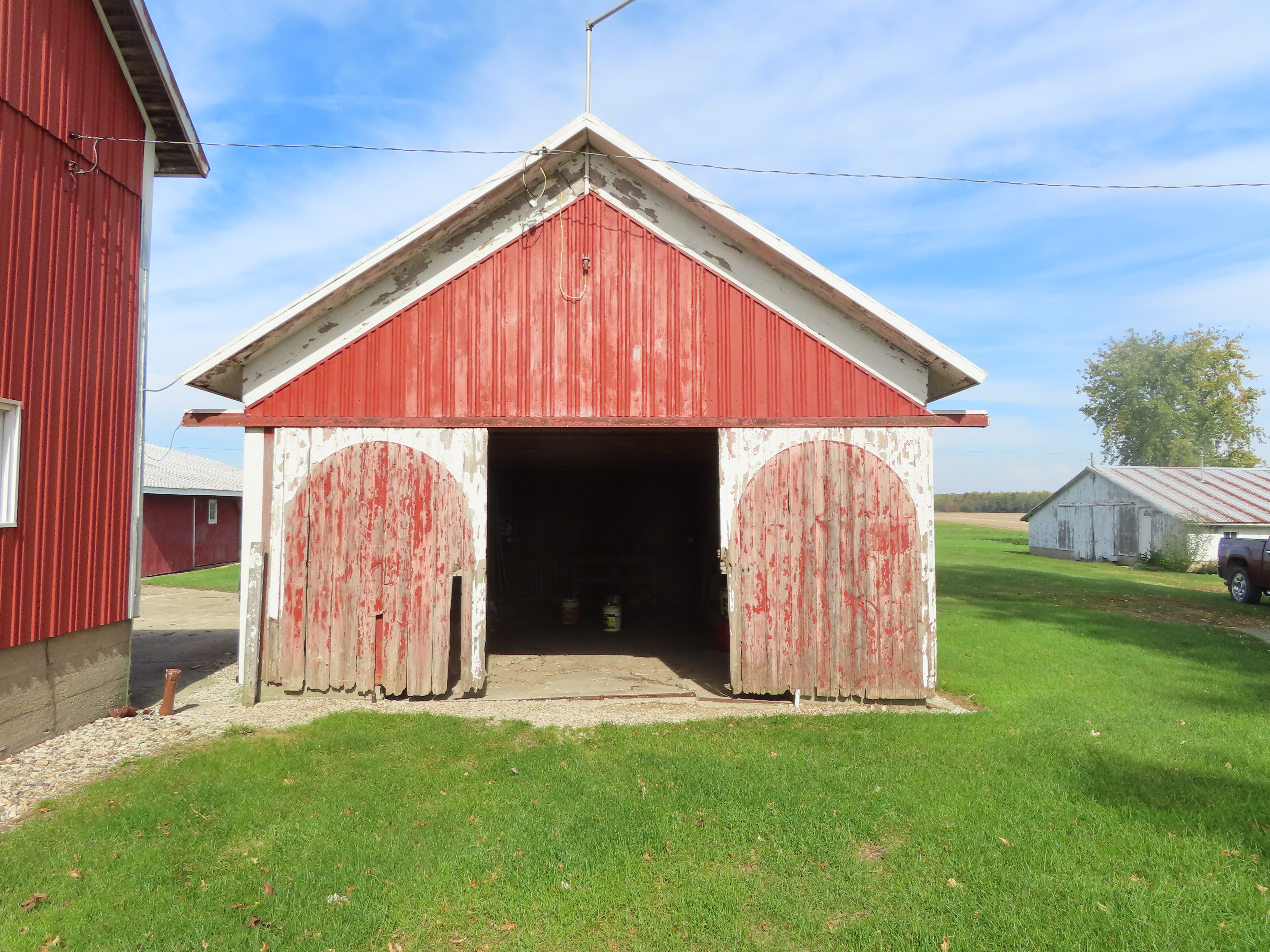

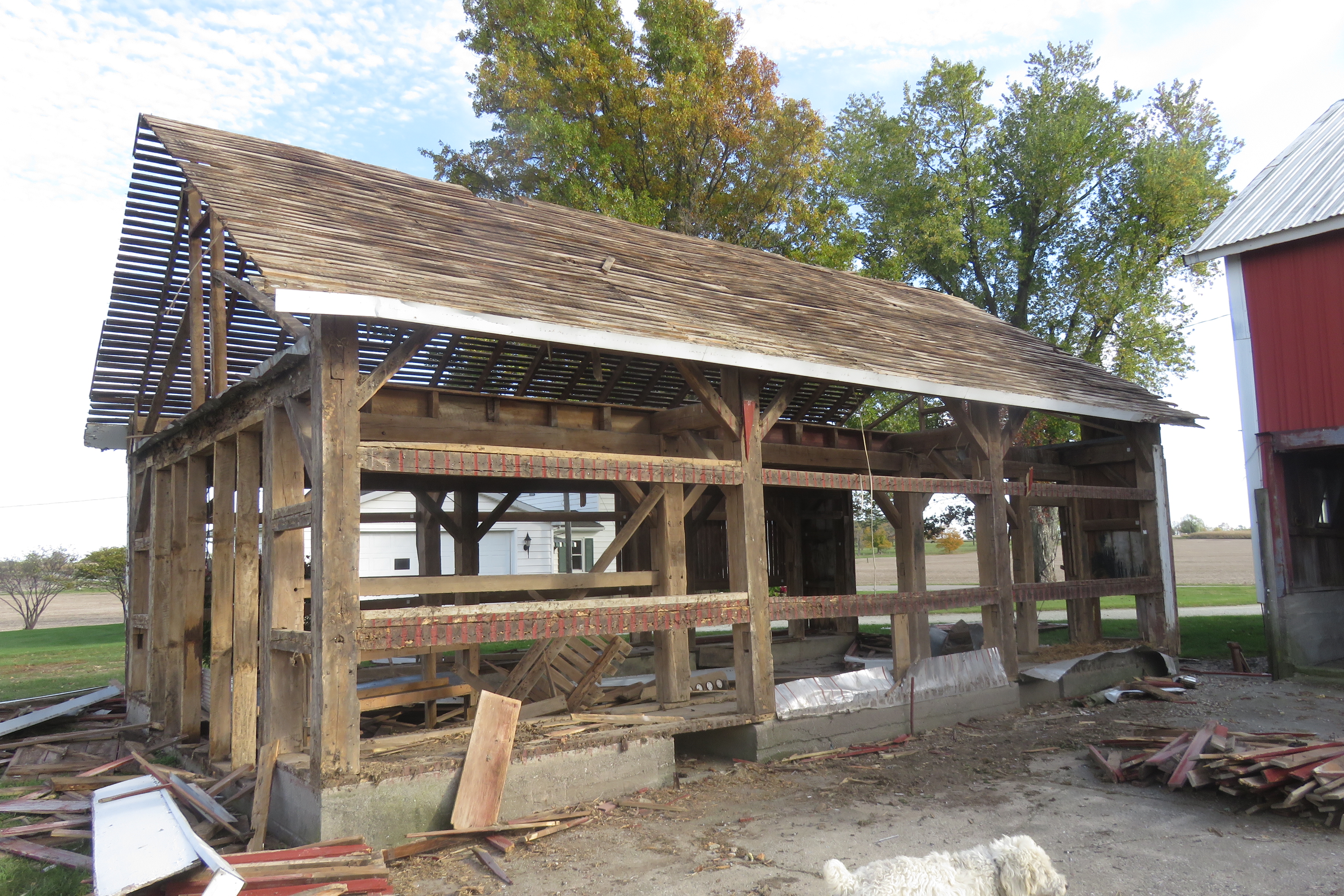

This was a originally a corn crib. It has been tagged, carefully dismantled, and put in storage, waiting for your next custom build.
Features:
- 8′-9″ floor to top of eave beam 7×7 Posts and Main Cross Ties
- 5×5 girts
- 8/12 Roof Pitch
- Hand Hewn Timbers
This frame is built of 7×7 hand hewn red oak timbers, except for the eave beams, which are sycamore. The cross ties are red oak and poplar. The braces are red oak. The roof pitch is 8/12. It is 8′-9″ to the eaves. There are a total of 4 bents. This frame could be used to make a quaint little cabin, or as part of a larger project. The posts also could be set on piers to gain head room.
Includes: Mainframe, CAD drawings and Tag system
As-is OR Cleaned, misc. repairs and ready to set up on your site.
Additional material and expertise available on request
Turn-key possibilities considered

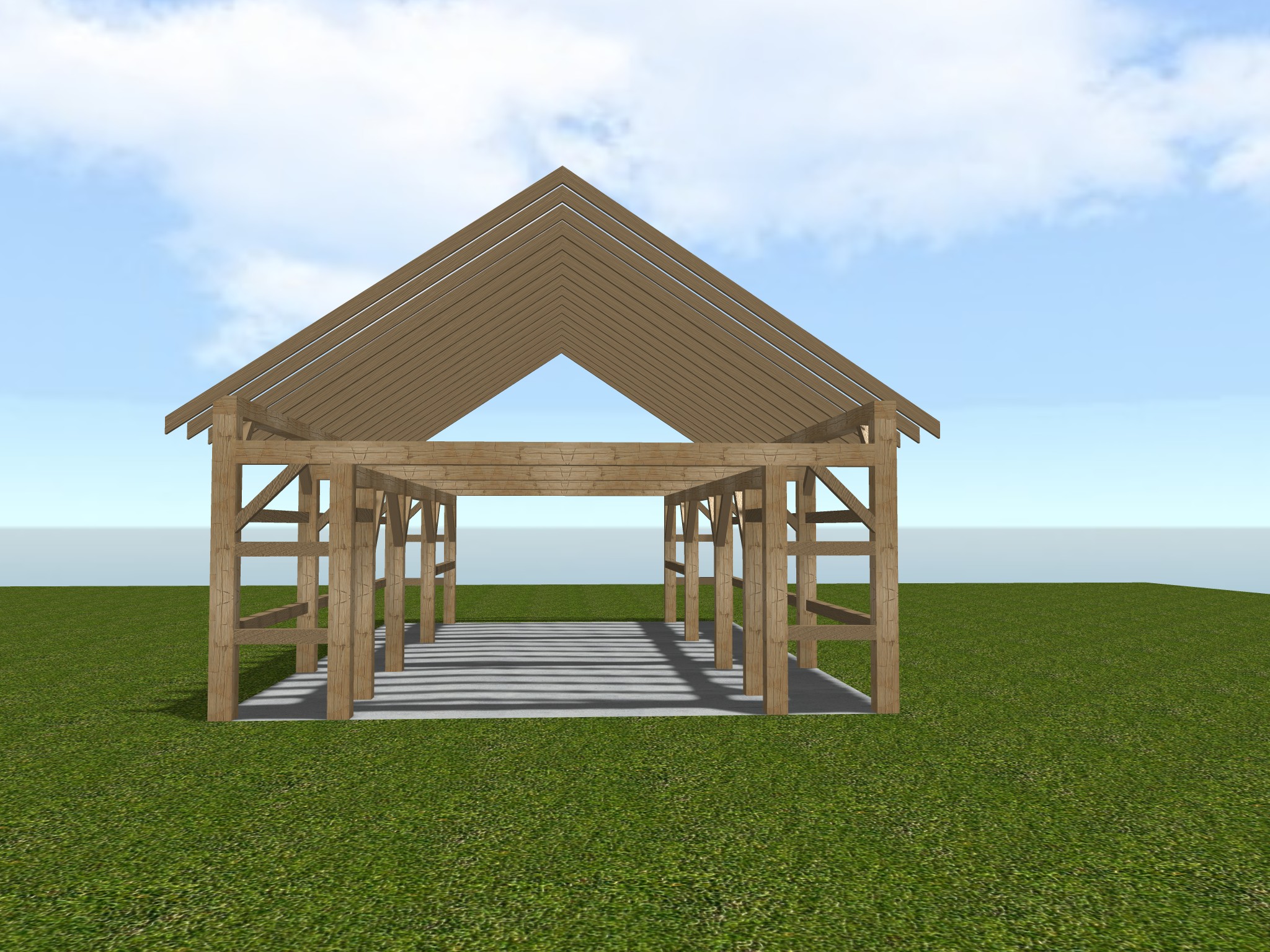

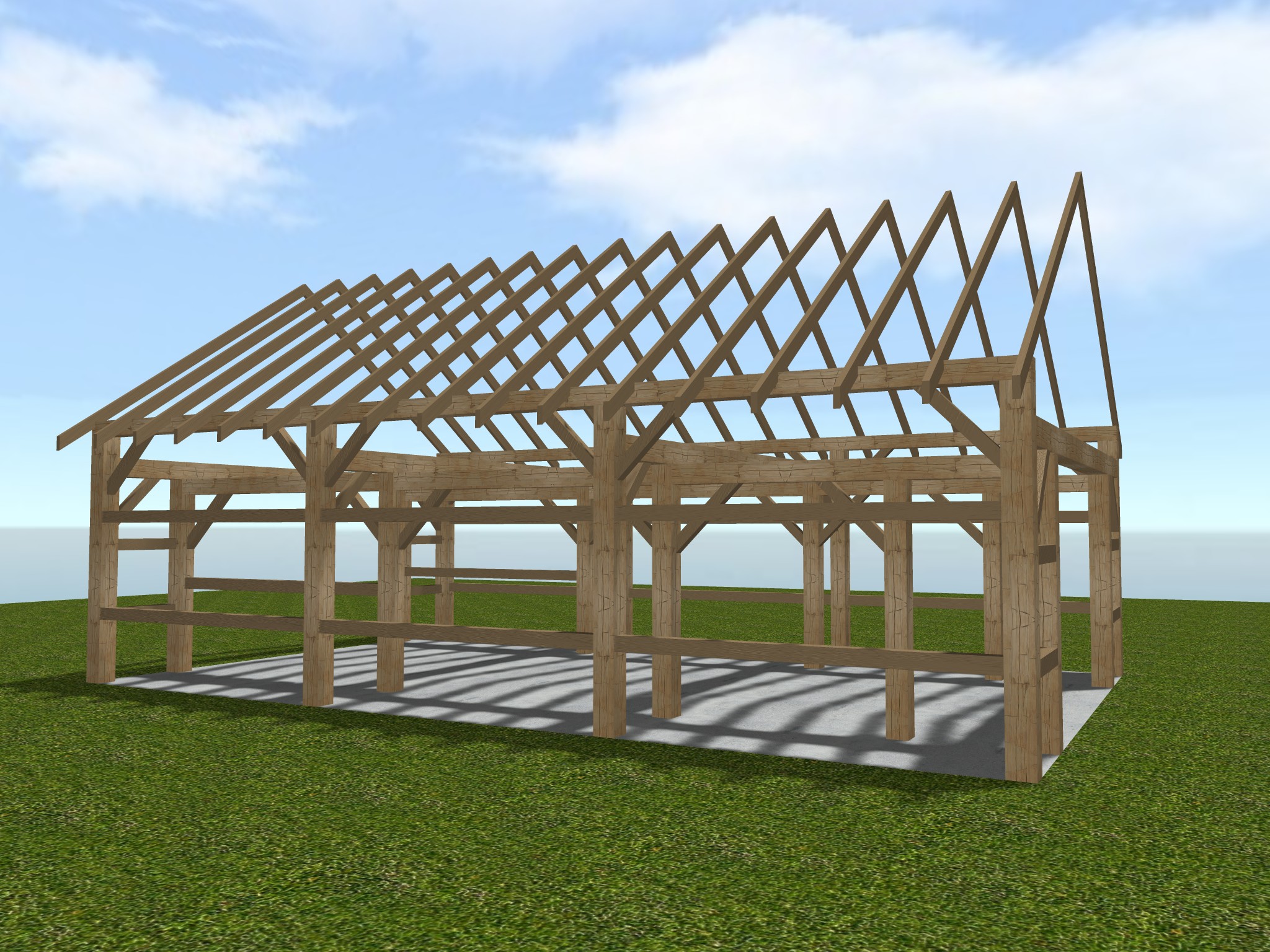

Web3D rendering at:
https://softplan.com/web3d/display_model.php?id=13183&c=8f292a4a2a100e944ca283022d38d55e
Inquire for pricing and free Study Prints.
